SPECIFICATIONS
| Maximum Cutting Range | 330×330 mm | Band Saw Blade Specifications | 34×1.1×4115 mm |
| Cutting Speed | 10-85(variable frequency)m/min |

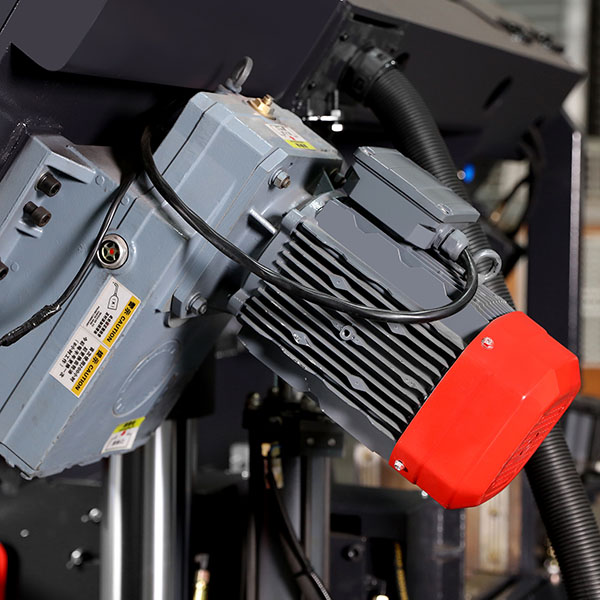

Main Motor Power | 4.0 kw level 4 |
| Cooling Motor Power | 90 w | Hydraulic Motor Power | 1.5 kw |
| Working Table Height | 690 mm | Guide Arm | 410x110x65mm |
| Material Rack Dimensions | 600x470x680 mm | Machine Weight | 1833kg |
| Machine Dimensions (Static Dimensions) |
2350x2280x1520mm | Machine Dimensions (Dynamic Dimensions) |
2350x2280x1670mm |
