SPECIFICATIONS
| Maximum cutting range | 800×1000 mm | Band Saw Blade Specifications | 67×1.6×9100 mm |
| Sawing speed | 10-70(variable frequency))m/min | Main motor power | 11.0 kw level 6 |

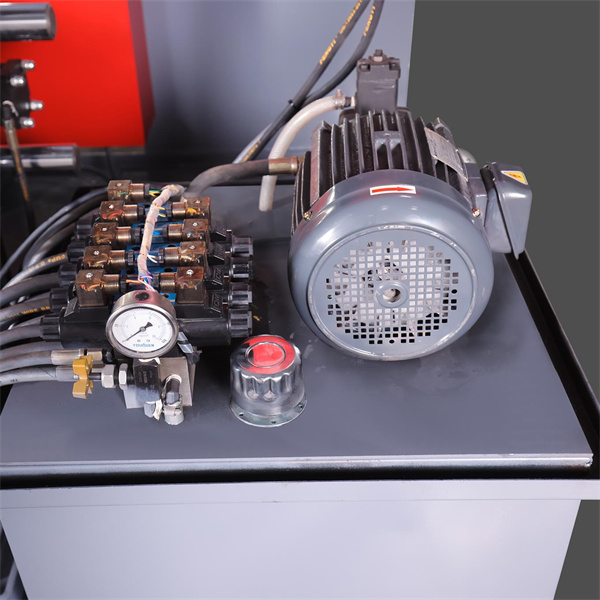

| Cooling motor power | 90 w | Hydraulic motor power | 2.2 kw |
| Machine size | 4200x1950x2820 mm | Weight | 7900 kg |
| Platform size | 1960×900 mm(Big) 550×900 mm(Small) |
Feed stroke | 1500 mm |
| Minimum clamping distance | 450 mm | Distance between front and rear jaws | 310 mm |
